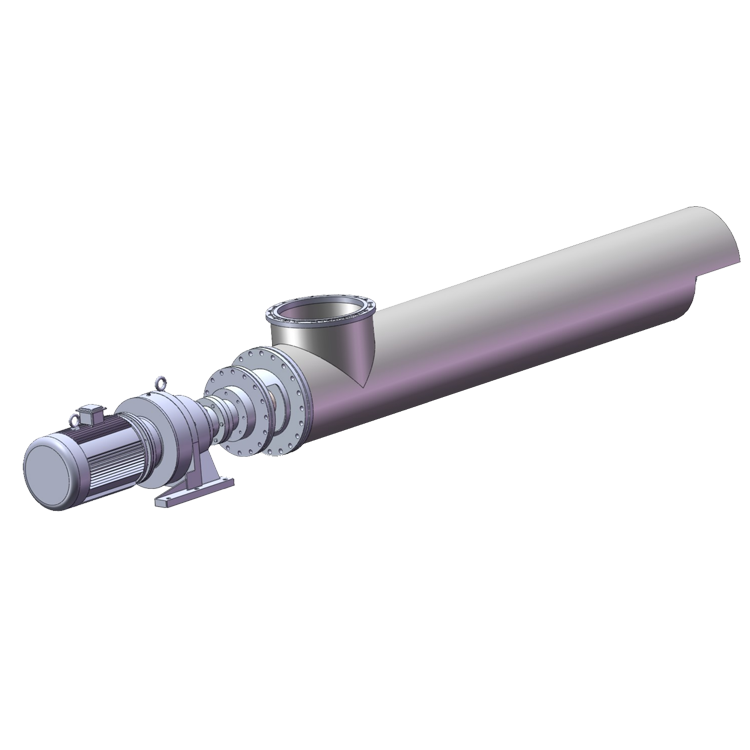

Feed screw machine
Feed screw machineThe feed screw machine consists of a shaft and blades arranged along the spiral line on the shaft. Vertical screw conveyors and tubular screw conveyors belong to special screw conveyors. The casing is a circular tube, and the centrifugal force generated by the high-speed rotation of the spiral belt animal material pushes the material towards the wall of the tube, which is then pushed upwards by the blades.
Feed screw machine
PRODUCT FEATURES
The spiral body design with small diameter, high speed, and large pitch ensures smooth, fast, and uniform feeding of the product during operation.
Increase the volume of the suspension bearing, avoid contact between the suspension bearing and materials, extend the service life of the suspension bearing, and ensure reliable sealing: reliable lubrication and sealing without leakage, neither wasting materials nor creating a good working environment
The inlet and outlet can be connected by universal joints, cloth bags, flanges, and can also be combined with butterfly valves, plug-in valves, and other types of connections
Reasonable design, combined with advanced manufacturing processes and a comprehensive quality assurance system, gives it significant advantages such as small volume, high load-bearing torque, low noise, and no oil leakage
PRODUCT VIDEO
VIDEO INTRODUCTION
PRODUCT INTRODUCTION
The working principle of a screw conveyor is that the rotating spiral blades push the material through the groove or pipe to obtain the purpose of conveying the material. Loose materials accumulate at the bottom of the groove under the action of their own weight and the friction force of the casing, and are not pushed forward by the blades as they rotate.
01
The spiral blades welded on the rotating shaft of the screw conveyor have different surface types according to the conveyed materials, such as solid surface, belt surface, and blade surface.
02
The screw shaft of the screw conveyor has a thrust bearing at the end of the material movement direction to provide axial reaction force to the screw with the material. When the machine length is long, a middle hanging bearing should be added.
03

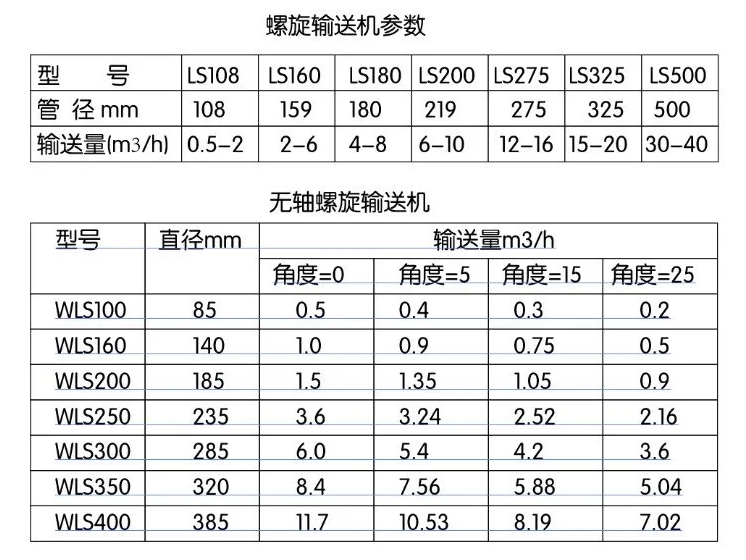

SPECIFICATIONS
Feed screw machine
Feed screw machine
