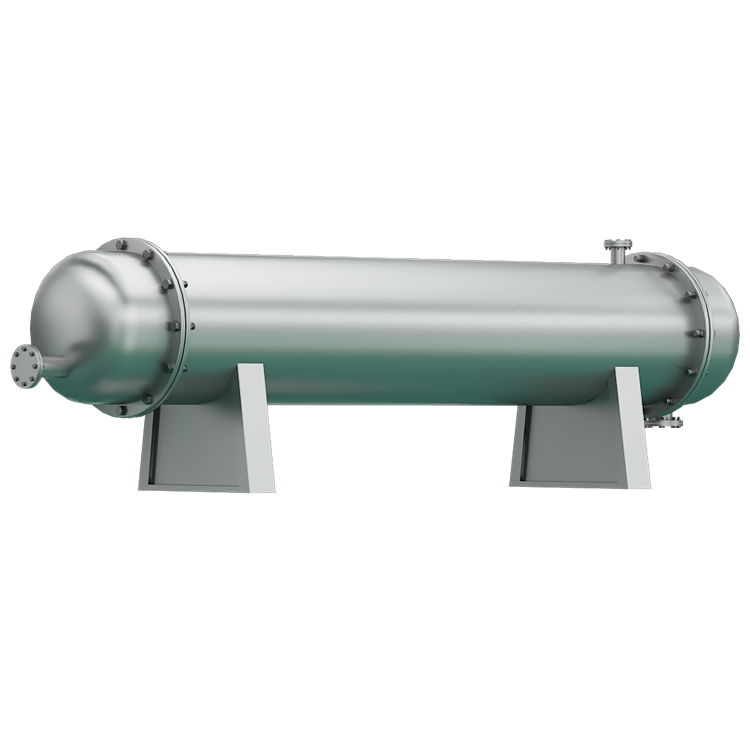

Horizontal condenser
Horizontal condenser is a common heat exchange equipment widely used in fields such as chemical, pharmaceutical, metallurgical, food, textile, etc. Its main function is to restore residual gases or vapors, thereby reducing losses and pollution. The working principle of a horizontal condenser is to use cooling water to flow inside the condenser tube, taking away the heat of gas or steam, thereby condensing the gas or steam into a liquid. A horizontal condenser mainly consists of a shell, cooling water inlet and outlet, condenser tube bundle, support plate, insulation layer, etc. Among them, the shell is the outer shell of the condenser, usually made of high-quality steel plates welded together; Cooling water inlet and outlet are used to connect cooling water pipelines; The condenser bundle is the core component of the condenser, composed of multiple copper or steel pipes, used for heat transfer; The support plate is used to support the tube bundle and prevent its deformation; The insulation layer is used to reduce heat loss.
Horizontal condenser
PRODUCT FEATURES
It has a beautiful appearance, compact structure, convenient use, and simple operation
Smooth operation with low noise, continuous use, sturdy and stable, and good stability performance
Supports customization of multiple specifications, supports customization based on drawings and samples, and meets the personalized requirements of customers
Quality assured, low cost, high cost-effectiveness, greatly saving usage costs
PRODUCT VIDEO
VIDEO INTRODUCTION
PRODUCT INTRODUCTION
A horizontal shell and tube condenser is a closed shell and tube condenser in which cooling water flows through a horizontal tube bundle under pressure. It is divided into ammonia and Freon. A horizontal shell and tube condenser is a commonly used heat exchanger in refrigeration equipment series chillers, similar to a shell and tube evaporator.
01
A horizontal shell and tube condenser is a closed water-cooled condenser composed of a shell, tube plate, heat transfer tube bundle, cooling water distribution components (water cover or sub water zone), cooling water and refrigerant inlet and outlet pipe joints, etc.
02
Application scope: Heat exchange equipment for various purposes in industries such as chemical, light industry, metallurgy, pharmaceuticals, food, and chemical fibers, especially suitable for use as condensers, replacing existing stainless steel, enamel, graphite, and glass condensers.
03
SPECIFICATIONS
Horizontal condenser
Horizontal condenser
