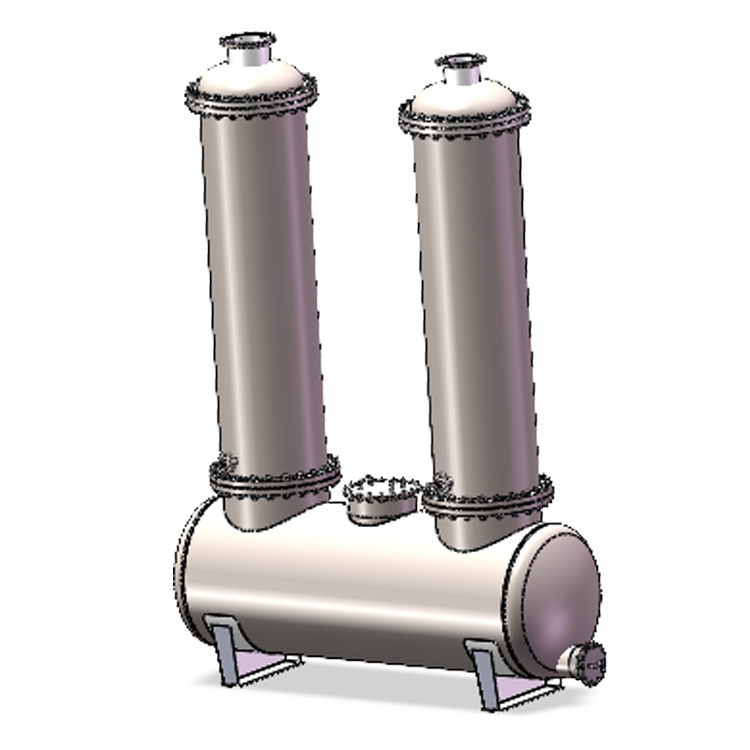

Vertical condenser
The cylinder of the vertical condenser is installed upright on the water storage tank. After the cooling water enters the pipeline from the top water distribution tank, it flows downward in a film like manner along the wall, and the flowing water is concentrated in the pool below. The refrigerant vapor enters from the upper part of the cylinder, releases heat, and condenses into a liquid outside the pipe, which is discharged from the bottom. Cooling water goes through the tube side, while refrigerant goes through the shell side. That is, high-temperature and high-pressure refrigerant vapor cools, condenses, and converges on the outer surface of the heat transfer tube to the shell guide nozzle.
Vertical condenser
PRODUCT FEATURES
Due to the high cooling flow rate and flow rate, the heat transfer coefficient is high
Vertical installation has a small footprint and can be installed outdoors
The cooling water flows directly and has a high flow rate, so the water quality requirements are not high. Generally, the water source can be used as cooling water
The scale inside the pipe is easy to remove and there is no need to stop the refrigeration system from working
PRODUCT VIDEO
VIDEO INTRODUCTION
PRODUCT INTRODUCTION
Vertical condenser tubes generally use seamless steel pipes. This type of condenser can be installed outdoors, saving space in the computer room; It can also be installed underneath the cooling water tower to simplify the cooling water system.
01
It has low requirements for the quality of cooling water and can clean the water pipes during operation. The heat transfer coefficient of a vertical tube condenser is smaller than that of a horizontal condenser, with a larger amount of cooling water and a larger volume, making it relatively bulky
02
The water flow velocity inside the condenser tube is low, prone to scale formation, and ash and sand are prone to fall into it, requiring frequent cleaning.
03
SPECIFICATIONS
Vertical condenser
Vertical condenser
